Description

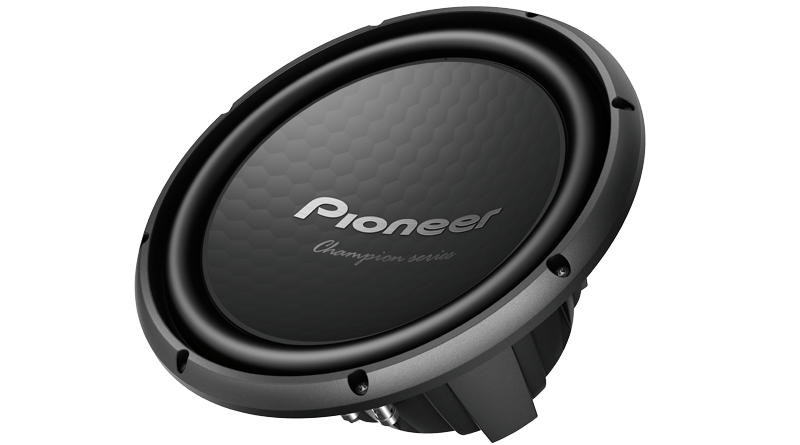

12″ Champion Series Subwoofer – Pioneer TS-W1202S4 (Single Voice Coil)
Key Features:
- Power & Performance: Engineered to deliver up to 500 watts RMS and 1500 watts peak power, this Champion Series subwoofer provides deep, clean bass with reliable thermal control.
- Single Voice Coil Design: The 4Ω single voice coil setup allows for straightforward integration into most mono amplifier systems, making installation simple and efficient.
- Rugged IMPP Cone: A robust, injection-molded polypropylene cone minimizes flexing at high volumes, ensuring tight, accurate bass reproduction.
- Durable Build Quality: Heavy-duty steel basket with fully enclosed bottom structure supports high excursion and reduces resonance for distortion-free performance.
- Flexible Enclosure Options: Optimized for use in both sealed and ported enclosures, allowing you to tune your setup for tight or loud bass depending on your preference.
✅ Technical Specifications:
| Feature | Description |
|---|---|
| Model Code | TS-W1202S4 |
| Series | Champion Series |
| Subwoofer Size | 12″ (30 cm) |
| Peak Power Handling | 1500W |
| RMS Power Handling | 500W |
| Impedance | Single 4Ω |
| Frequency Response | 20 Hz – 1.6 kHz |
| Sensitivity | ~92 dB |
| Cone Material | IMPP (Injection Molded Polypropylene) |
| Surround Material | High-roll rubber surround |
| Basket Type | Stamped Steel with enclosed bottom |
| Mounting Depth | Approx. 157 mm |
| Cutout Diameter | Approx. 283 mm |
| Recommended Enclosure | Sealed or Ported |
| Weight | Approx. 5.8 kg |
