Description

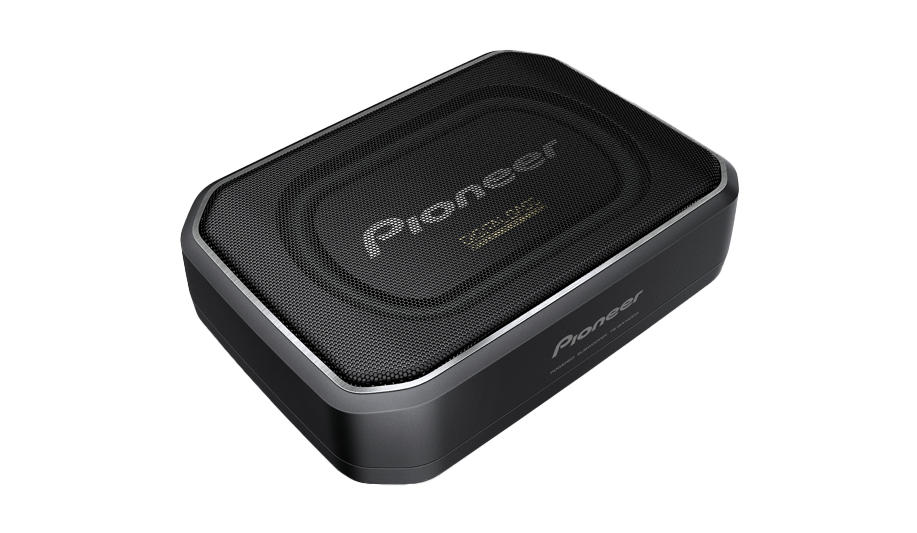

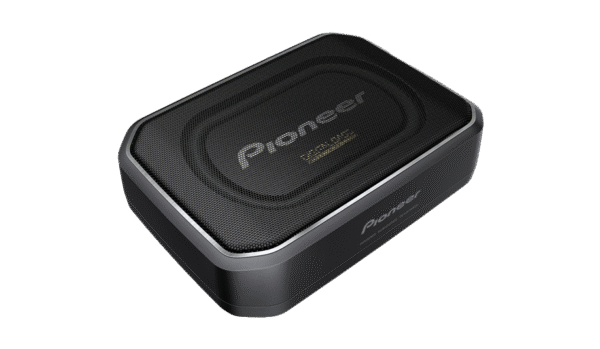

Compact Under-Seat Subwoofer – TS-WX140DA by Pioneer
Key Features:
-
Compact Yet Powerful Bass: The Pioneer TS-WX140DA is a space-saving powered subwoofer featuring a built-in Class-D amplifier. Despite its small size, it delivers deep, rich bass with a peak power output of 170 watts (50W RMS), making it ideal for hatchbacks, sedans, and even electric vehicles.
-
Digital Bass Control: Equipped with three selectable DSP bass modes – Deep, Natural, and Dynamic – users can fine-tune the bass response based on music preferences or cabin acoustics using the included wired remote control.
-
Smart Build Quality: The subwoofer uses a robust aluminum cone woofer mounted in a sealed enclosure with a honeycomb structure to minimize distortion and resonance. Its urethane surround and ferrite magnet deliver a clean, punchy bass output.
-
Universal Fit & Easy Setup: Designed for under-seat or tight-space mounting, the TS-WX140DA supports both RCA (low-level) and speaker-level inputs, making it compatible with both aftermarket and factory head units. All wiring and brackets are typically included for hassle-free installation.
Technical Specifications:
| Feature | Description |
|---|---|
| Model | TS-WX140DA |
| Type | Compact Active Subwoofer with Built-in Amplifier |
| Power Output | 170W Max / 50W RMS (Class-D) |
| Frequency Response | Deep: 20–200 Hz / Natural: 40–200 Hz / Dynamic: 40–160 Hz |
| Sensitivity | Deep: 95 dB / Natural: 98 dB / Dynamic: 100 dB |
| Woofer Type | 8″ × 5-1/4″ Aluminum Cone, Ferrite Magnet |
| Enclosure Type | Sealed – Honeycomb Reinforced ABS Cabinet |
| Dimensions | 280 mm (W) × 200 mm (D) × 70 mm (H) |
| Weight | Approx. 3.1–3.3 kg |
| Mounting Location | Under-seat / compact spaces |
| Input Compatibility | RCA (Low-Level) & Speaker-Level Inputs |
| Bass Control Modes | Deep, Natural, Dynamic – via Wired Remote |
| Installation | Plug & Play – All hardware & wiring included |
