Description

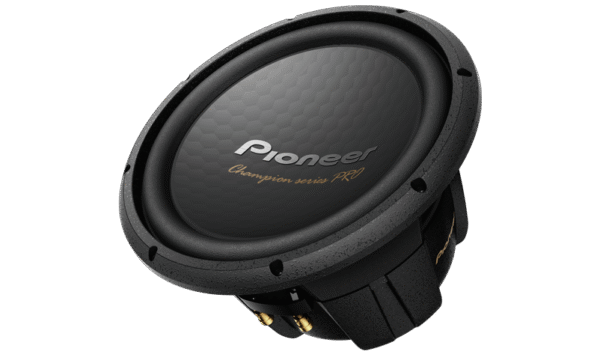

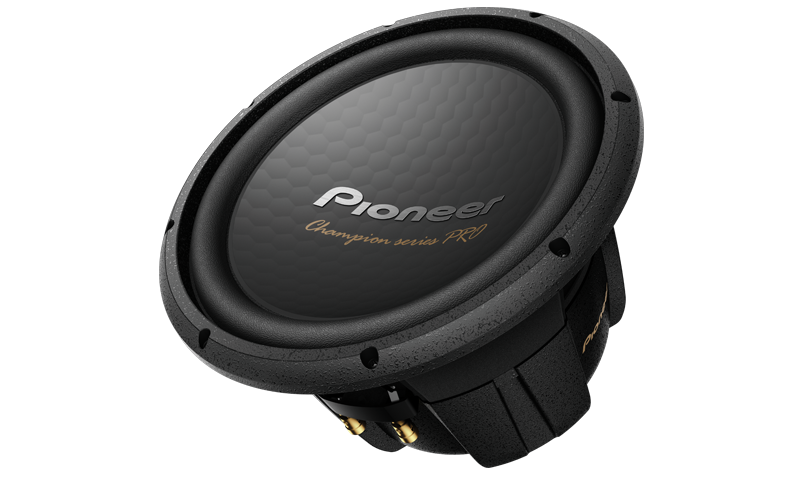

Champion Series Pro 12″ Subwoofer – Pioneer TS-W3004D4
Key Features:
-
Heavy-Hitting Bass Champion: The Pioneer TS-W3004D4 is built for bass heads and SPL enthusiasts. It delivers massive power with 2400W peak and 800W RMS, giving deep, powerful, and distortion-free bass even at high volumes.
-
Dual 4Ω Voice Coils: This subwoofer features dual 4-ohm voice coils, allowing for versatile wiring options like 2Ω or 8Ω configurations – compatible with a wide range of mono and multi-channel amplifiers.
-
Pro-Level Build Quality: The sub is constructed with a rigid honeycomb composite cone and dual-layer fiber-reinforced elastic polymer surround, offering excellent stiffness and excursion control. A dual spider setup and double-stacked magnet ensure reliability and punch in high-output systems.
-
Cooling-Optimized Steel Basket: Its heavy-duty steel frame includes venting for voice coil cooling, ensuring thermal stability during prolonged high-power playback.
-
For Custom Enclosures: Designed for sealed or ported boxes (ideal volume ~35L), the TS-W3004D4 is perfect for custom audio builds, competitions, and audiophile setups.
✅ Technical Specifications:
| Feature | Description |
|---|---|
| Model | TS-W3004D4 |
| Series | Champion Series Pro |
| Subwoofer Size | 12″ (30 cm) |
| Power Output | 2400W Peak / 800W RMS |
| Voice Coils | Dual 4Ω |
| Frequency Response | 20 Hz – 1.6 kHz |
| Sensitivity | 94 dB (1W/1m) |
| Magnet Type | Double-stacked 115 oz ferrite |
| Cone Material | Reinforced Honeycomb Composite |
| Surround Type | Dual-layer Fiber-Reinforced Polymer |
| Mounting Depth | 190 mm |
| Cut-out Diameter | 283 mm (Approx.) |
| Xmax (Excursion) | 19.4 mm |
| Basket Type | Optimized Steel Basket with Cooling Vents |
| Recommended Enclosure | Sealed/Ported (~35L ideal volume) |
| Weight | Approx. 8.8 kg |
