Description

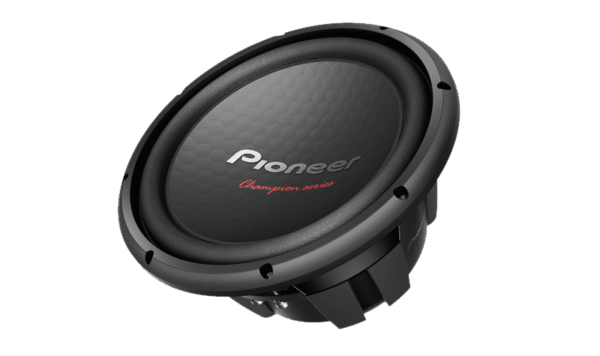

12″ Dual Voice Coil Champion Series Subwoofer – Pioneer TS-W1212D4
Key Features:
-
High-Power Output: Delivers up to 1600W peak power and 500W RMS for deep and punchy bass output—perfect for music lovers who enjoy loud, clean bass.
-
Dual Voice Coil Flexibility: Features dual 4Ω voice coils that allow various wiring configurations (2Ω/8Ω), making it compatible with multiple amplifier setups.
-
IMPP Cone Design: The seamless cone made of injection-molded polypropylene ensures strength, rigidity, and reduced distortion at high volumes.
-
Rugged Construction: Comes with a heavy-duty steel basket and high-compression foam surround, ensuring long-lasting performance under high SPL loads.
-
Installation Versatility: Suitable for use in both sealed and ported enclosures, giving users flexibility to tune their sound as desired.
✅ Technical Specifications:
| Feature | Description |
|---|---|
| Model Code | TS-W1212D4 |
| Series | Pioneer Champion Series |
| Subwoofer Size | 12″ (30 cm) |
| Peak Power | 1600W |
| RMS Power | 500W |
| Voice Coil | Dual 4Ω |
| Frequency Response | 20 Hz – 1.6 kHz |
| Sensitivity | 92 dB |
| Cone Material | IMPP (Injection Molded Polypropylene) |
| Surround Material | Fiber Reinforced Dual-layer Elastic Polymer |
| Mounting Depth | Approx. 157 mm |
| Cutout Diameter | Approx. 283 mm |
| Recommended Enclosure | Sealed or Ported |
| Weight | ~5.9 kg |
