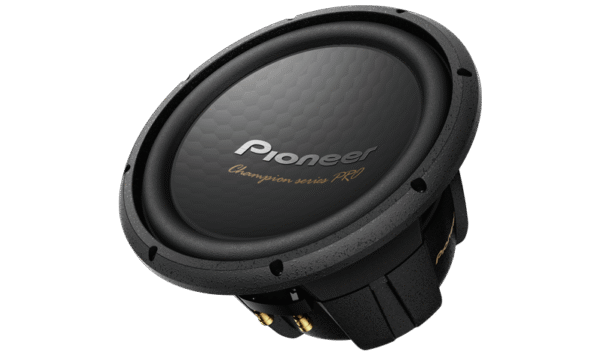

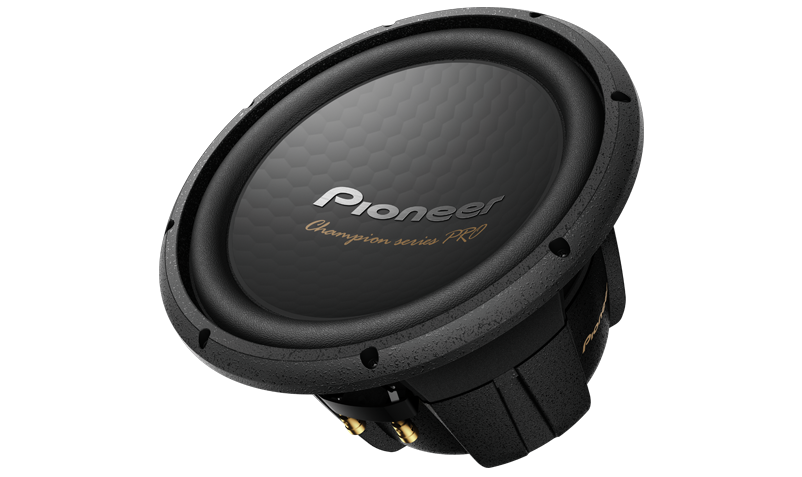

12″ Champion Series Dual Voice Coil Subwoofer – Pioneer TS-W1202D4

Key Features:

  • High-Performance Bass Output: The TS-W1202D4 delivers 500 watts of continuous power and 1500 watts of peak power, making it ideal for bass lovers looking for loud and clear low-end response.

  • Dual Voice Coil Flexibility: Equipped with dual 4-ohm voice coils, this subwoofer offers wiring versatility for 2Ω, 8Ω, or parallel configurations — compatible with a variety of amplifiers and system setups.

  • Durable Construction: Features a seamless IMPP (Injection-Molded Polypropylene) cone that resists flexing and maintains accuracy at high volumes, while the high-roll surround supports long excursion and enhanced durability.

  • Solid Structure: Comes with a heavy-duty stamped steel basket and magnet assembly that ensures stability, reduces distortion, and improves thermal handling for long-term performance.

  • Versatile Enclosure Compatibility: Whether you prefer deep bass from sealed enclosures or louder output from ported designs, the TS-W1202D4 performs reliably across both formats.

✅ Technical Specifications:

Feature Description
Model Code TS-W1202D4
Series Champion Series
Subwoofer Size 12″ (30 cm)
Peak Power Handling 1500W
RMS Power Handling 500W
Impedance Dual 4Ω
Frequency Response 20 Hz – 1.6 kHz
Sensitivity ~92 dB
Cone Material IMPP Composite Cone
Surround High-roll rubber surround
Basket Type Stamped steel, enclosed bottom
Mounting Depth Approx. 157 mm
Cutout Diameter Approx. 283 mm
Recommended Enclosure Sealed or Ported
Weight Approx. 5.8 kg
