Description
Key Features
-
High Power Output: Delivers 120W x 4 at 4Ω and 200W x 4 at 2Ω RMS, suitable for powerful multi-channel audio setups.
-
Bridgeable Channels: Supports 400W x 2 output at 4Ω in bridged mode for subwoofer integration.
-
Advanced Crossover Filters: Offers full range, high-pass, and bandpass filters for precise sound tuning.
-
Enhanced EMI Shielding: Features 4-layer laminated circuit board to minimize interference.
-

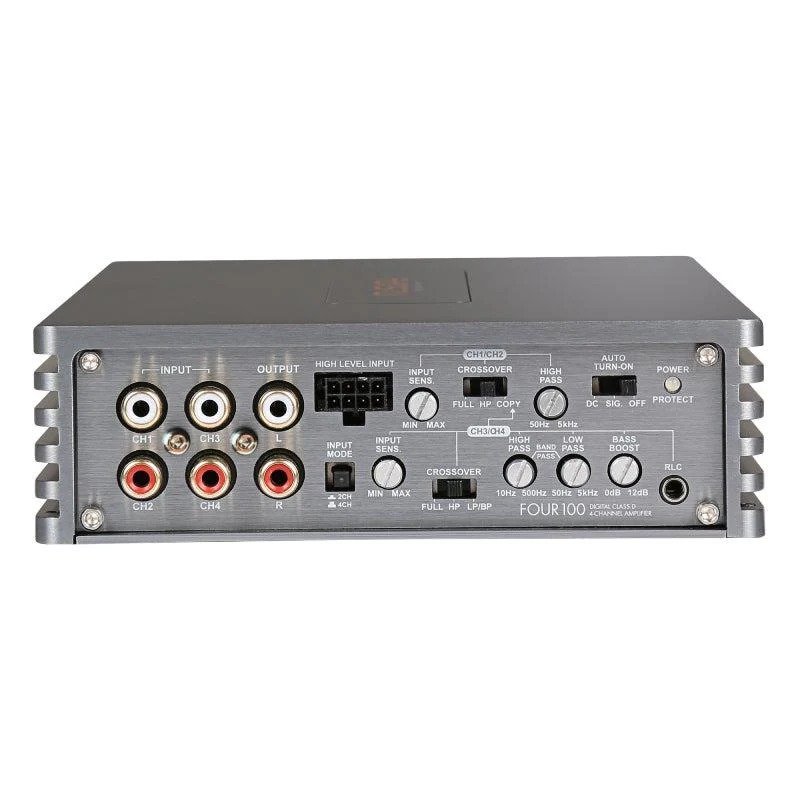

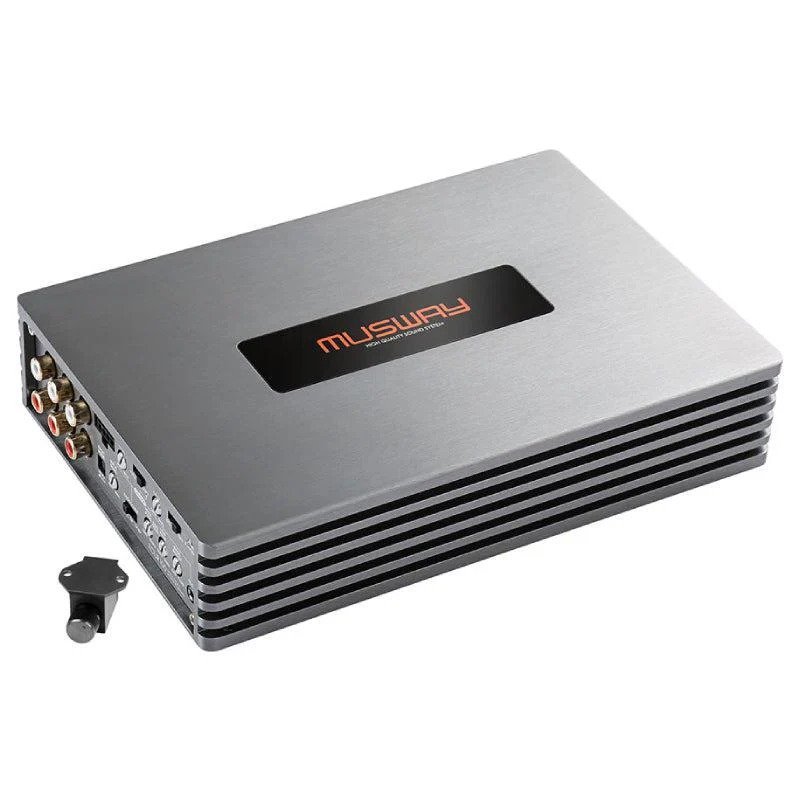

Convenient Controls: Includes auto turn-on via DC offset or signal sensing and a remote level controller for easy adjustments.
Technical Specifications
| Specification | Details |
|---|---|
| Output Power RMS @ 13.8V | 120W x 4 (4Ω), 200W x 4 (2Ω) |
| Bridged Output @ 4Ω | 400W x 2 |
| Frequency Response (-3dB) | 4Hz – 39kHz |
| Signal-to-Noise Ratio (S/N) | >107dB |
| Total Harmonic Distortion (THD+N) | <0.02% |
| Input Sensitivity | 0.2V – 5V |
| Crossover Mode (Channel 1/2) | Full / High-Pass (50Hz – 5kHz) |
| Crossover Mode (Channel 3/4) | Bandpass (50Hz – 5kHz) |
| Bass Boost | 0dB – 12dB |
| Auto Turn-On | DC Offset / Signal Sensing |
| Remote Level Controller | Included |
| Dimensions (L×W×H) | 272mm × 145mm × 50mm |
| Weight | 1.5 kg |
