Description
Key Features
-

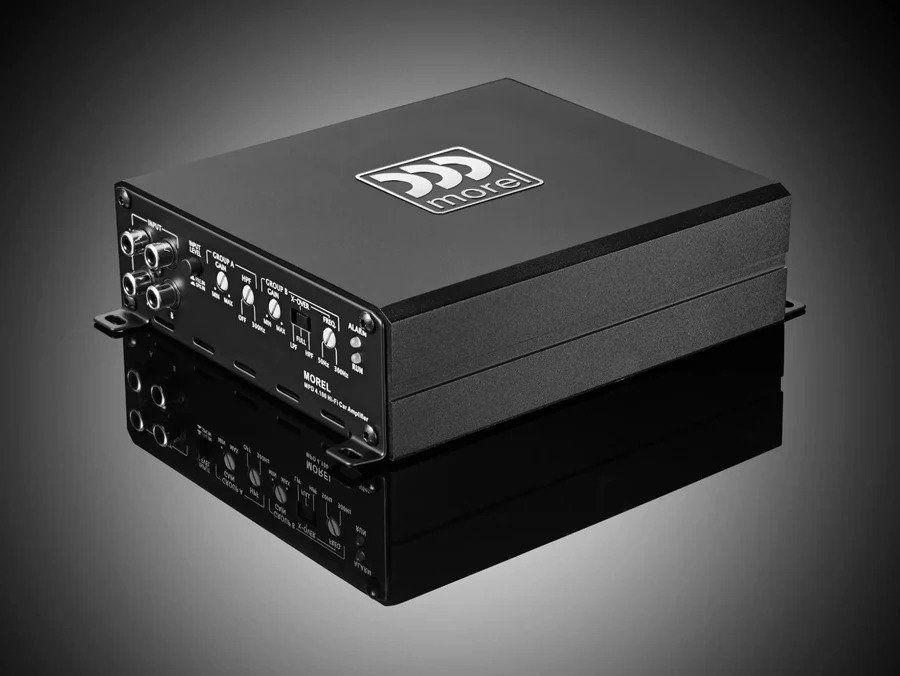

True 4×100W RMS Output: Delivers consistent, clean power across all four channels — ideal for full-range or active setups.
-
Compact Class-D Design: High-efficiency amplifier architecture in a sleek, space-saving enclosure.
-
High-Level & RCA Inputs: Easily integrates with both aftermarket and OEM head units without needing a line converter.
-
Advanced Sound Control: Features built-in high-pass and low-pass filters for precise tuning.
-
Comprehensive Protection Circuitry: Includes short-circuit, thermal, and overload safeguards for safe long-term performance.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier Type | Class-D, 4-channel |
| RMS Power Output | 100 W × 4 @ 4 Ω |
| Bridged Power Output | 200 W × 2 @ 4 Ω |
| Frequency Response | 10 Hz – 35 kHz |
| Total Harmonic Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 90 dB |
| High-Pass Filter (HPF) | 50 Hz – 500 Hz |
| Low-Pass Filter (LPF) | 50 Hz – 500 Hz |
| Input Sensitivity | 200 mV – 5 V |
| Input Type | RCA & High-Level Speaker Input |
| Dimensions (L×W×H) | Approx. 260 × 160 × 50 mm |
| Cooling | Aluminum heat sink, passive cooling |
| Protection Circuitry | Overload, short, thermal, reverse polarity |
