Description
Key Features:
-

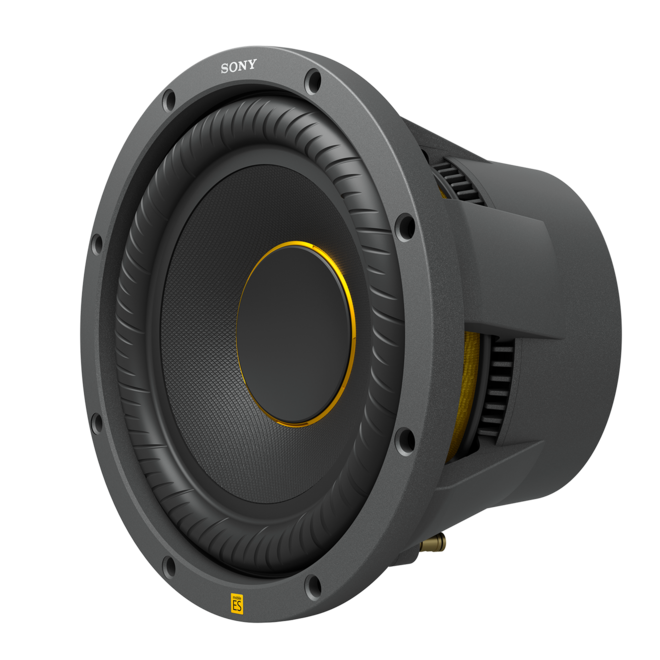

Deep, Precise Bass from Mobile ES™: The XS-W104ES is a 25 cm (10″) subwoofer engineered under Sony’s Mobile ES™ Series, delivering tight, distortion-free low frequencies and clean power for a premium in-car audio upgrade.
-
MRC Honeycomb Cone Design: The subwoofer features a unique Mica Reinforced Cellular (MRC) honeycomb structure cone, which combines light weight with rigidity—allowing powerful bass reproduction with minimal distortion.
-
Progressive Height Rate Spider: Ensures balanced cone movement and enhances long-term durability. It improves excursion control and maintains consistent bass output even at high volume.
-
Separated Notch Edge Surround: Allows greater cone travel while controlling distortion and stabilizing sound—ideal for dynamic, high-impact bass performance.
-
Robust Structure with Airflow Optimization: The subwoofer’s five-beam frame and integrated Dynamic Air Diffuser keep the voice coil cool and reduce resonance, ensuring long-lasting reliability and powerful bass under demanding use.
-
4Ω Voice Coil for Broad Compatibility: Standard 4-ohm impedance ensures compatibility with most monoblock and multi-channel amplifiers.
—
Technical Specifications:
Feature | Description |
---|---|
Product Type | Car Subwoofer |
Model Code | XS-W104ES |
Size | 25 cm (10″) |
Impedance | 4 Ohms |
Peak Power | 1800 W |
RMS Power | 450 W |
Cone Material | MRC Honeycomb Structure |
Surround | Separated Notch Rubber Surround |
Frequency Response | 30 Hz – 700 Hz |
Sensitivity | Approx. 83 dB/W/m |
Mounting Depth | Approx. 143 mm |
Magnet | Ferrite |
Voice Coil | Long Stroke Design |
Installation | Suitable for Sealed or Ported Enclosures |
Series | Mobile ES™ |
