Description
Key Features
-
High-Power Output: Delivers up to 500W @ 1Ω, ideal for powerful subwoofer setups.
-
Efficient Class-D Technology: Compact yet powerful, runs cool with minimal heat generation.
-
Advanced Sound Tuning: Adjustable Low Pass Filter (30–250Hz), Subsonic Filter (15–35Hz) & Bass Boost for custom bass response.
-
Built-in Safety Features: Offers protection against short circuit, overheat, low impedance & reverse polarity.
-

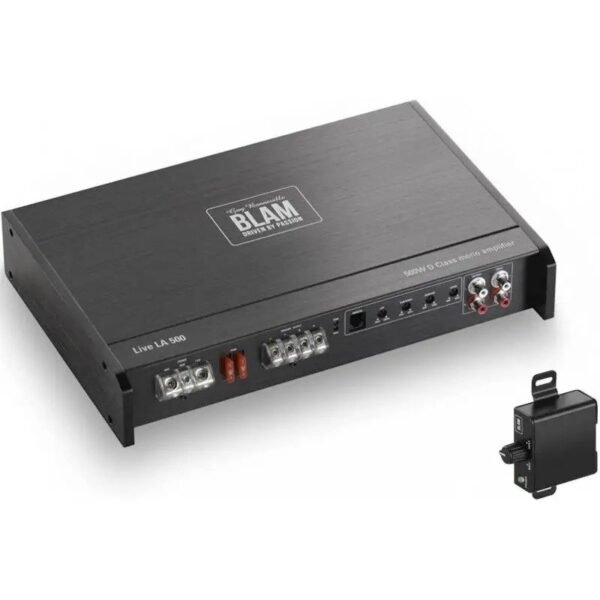

Wired Bass Remote Included: Allows easy bass level control from the driver’s seat.
Technical Specifications
| Specification | Details |
|---|---|
| Amplifier Class | Class-D Mono |
| RMS Power Output | 230W @ 4Ω • 400W @ 2Ω • 500W @ 1Ω |
| Frequency Response | 15Hz – 250Hz |
| Low Pass Filter | 30Hz – 250Hz (24dB/octave) |
| Subsonic Filter | 15Hz – 35Hz (24dB/octave) |
| Bass Boost | 0 – 10dB @ 45Hz |
| Input Sensitivity | 0.5V – 8.5V |
| Signal-to-Noise Ratio | >90dB |
| Dimensions (L×W×H) | 346mm × 217mm × 60mm |
| Cooling Method | Passive Heatsink |
| Remote Control | Wired Bass Level Controller (Included) |
| Protection Circuitry | Short, Thermal, Polarity, Impedance |
